Creation of a Project Concept and Process Analysis
based on thermodynamic calculations and measurements

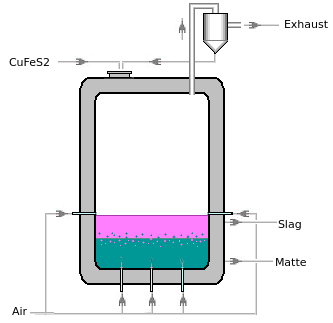

1.Process concept

In an experimental furnace, CuFeS₂ is oxidized at 1250 °C.

The goal is to form a matte phase consisting primarily of Cu and Cu2S,
while iron dissolves into a slag phase consisting primarily of CaO, FeO2, and SiO₂.

CuFeS₂ from the input material dissolves in the matte phase.

O₂ from air jets reacts with CuFeS₂, FeS, and Cu₂S, mainly in the matte phase.

2. Estimation of the process flow based on thermodynamic calculations

Using thermodynamic calculations, we determine the amount of O₂ that must react with the input material CuFeS₂ in the furnace to ensure that the maximum amount of copper exists in the matte phase.

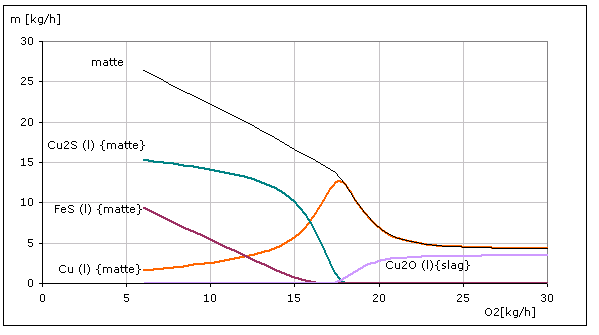

The figure right shows the calculation results for the use CuFeS₂ of 40 [kg/h]
As the picture above shows, maximum Cu(l) formation and minimum Cu₂O(l) and FeS(l) formation can be achieved;
when an O2 amount of 17.5 [kg] reacts with CuFeS₂.

The O₂ amount of 17.5 [kg/h] corresponds to an air flow rate of 58.3 [Nm³/h].

If this amount of O₂ is converted in the furnace, no O₂ can be detected in the exhaust gas.

It is more likely that an O₂ amount of 3.8 [kg/h] (3.8=21.3-7.5 )
leaves the furnace without a reaction.

3. Experimental procedure, determination of product composition by varying the air supply

As can be seen from the measurements at the almost steady state of the process, the maximum Cu(l)-formation is achieved,
when air flow rate is 72 [Nm³/h]. This means O2-Flowrate is 21.3 [kg/h].
Same time, O₂ concentration in exhaust is measured 4.1%.

The amount of the expected leakage air is probably insignificant in the exhaust,
because there is an overpressure of 0.1 [bar] in the furnace.

It is more likely that an O₂ amount of 3.8 [kg/h] (3.8=21.3-7.5 )
leaves the furnace without a reaction.
This corresponds to an air flow rate of 12.7 [Nm²/h].

Exhaust	Vol.% at 600 [C]
N2	81.5
O2	4.1
SO2	13.9
Sum	99.5

4. Comparison of measurement results with thermodynamic calculations

The following tables show the elemental composition of the slag according to the thermodynamic calculation and the range of the measured values.

Slag
Mass: calculation 103[kg], measured ~100[kg]

	Slag [% mass kg]
	Calculation results	Measurements range
Cu	0.95	0.6 ~ 4.5
Fe	33.54	31 ~ 34
S	0.12	0.1 ~0.6

Matte
Mass: calculation 13.6[kg], measured 12 ~ 14[kg]

	Matte [% mass kg]
	Calculation results	Measurements range
Cu	99.06	96 ~ 99
Fe	0.06	0.01 ~ 0.15
S	0.88	0.05 ~ 3.3

5. Summary
Through thermodynamic calculations, we can easily estimate the reactions and product composition in high-temperature reactors quite accurately.

For a process analysis, it is very helpful if the substantial composition of the input materials is known.
This allows us to estimate which proportion of the gases used in the reactor react.
The substantial composition of the input material must also be known for a reliable heat balance.

We often only have the data of the elemental composition of an input material.
The substantial composition of a material can also be determined by thermodynamic calculations (sometimes only roughly but often quite accurately).
Some methods known to date for determining the substantial composition based on the elemental analysis of a material.
Often a simple stoichiometric calculation helps us to determine the substantial composition of a materials.
